Driveshaft form version: 0.48

Driveshaft measurement Enquiry Form

Choose the driveshaft design, enter the required measurements, then provide vehicle details and your contact information so our team can quote and get back to you.

Vehicle registration status

Select whether the vehicle is registered or non-registered. This will change which vehicle-detail fields are required.

Registered vehicle Non-registered vehicle

Driveshaft measuring tool

Please select a design that best matches your needs.

Measurements

Enter the measurements that apply to your selected design. Only the required fields for that design will be shown.

Design used

A - End of transfer case to centre of centre bearing

B - Centre of centre bearing to face of diff flange/yoke

C1 - Diameter of bolt hole

C2 - Horizontal distance of bolt hole centres

C3 - Vertical distance of bolt hole centres

D1 - Diameter of bolt hole

D2 - Horizontal distance of bolt hole centres

D3 - Vertical distance of bolt hole centres

E - Distance between locating tabs

F - Outside diameter of flange centre hole/spigot

G - Diameter of universal joint cap

H - Does the yoke have locating tabs?

I - Distance between inside of yoke flats

J - How far does the output shaft stick past the gearbox seal

K - Outside diameter of flange centre hole/spigot

L - Overall length from face of seal to the transmission and face of yoke or flange

S - How many splines on the shaft (add outside diameter if known)

Vehicle details

Provide the vehicle setup details so we can quote correctly.

Vehicle Model - brand, model, year

Engine RPM

Power output (HP/KW)

Tire & Wheel height - Overall of both wheel and tire

Rego number

Rego state

Gearbox e.g. 6L80e

Gearbox

Manual Auto

Joint type (required)

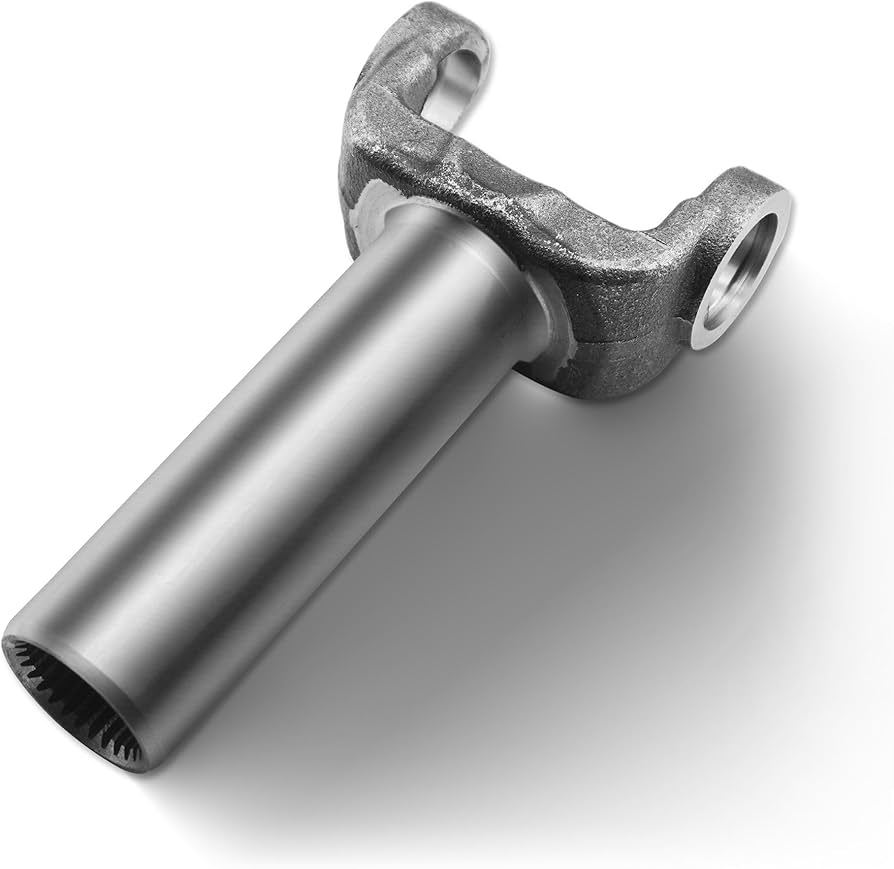

Slip yoke

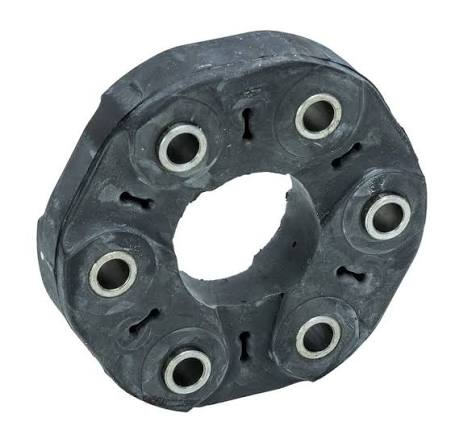

Donut

Flange

Gearbox overdrive

Diff Ratio e.g. 4.11

Use of the vehicle

Comments

Anything else we should know? (optional)

Comments

Contact Information

Tell us how to get in touch. Submit when you’re ready.

Full name

Phone

Nearest Branch

Please contact us if you need help completing this form. Incomplete or inaccurate information will delay your request.

Warning

By ticking this box you declare that the information (including all measurements) provided on this form is true and correct, and you hereby indemnify Driveline Services Australia and its employees against any personal or property damage caused by the information provided by you.

Custom Driveshaft Form

Driveshaft measurement Enquiry Form

Vehicle registration status

Driveshaft measuring tool

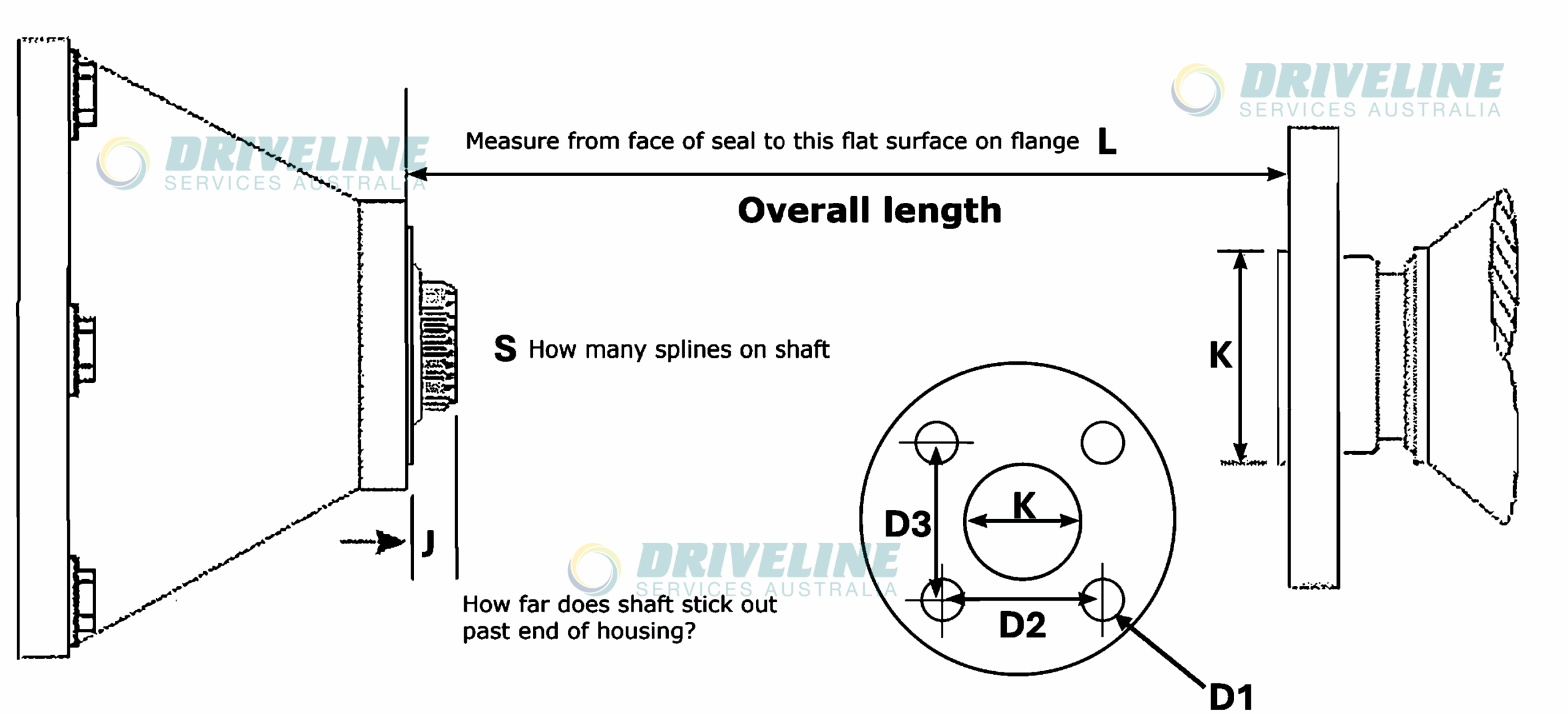

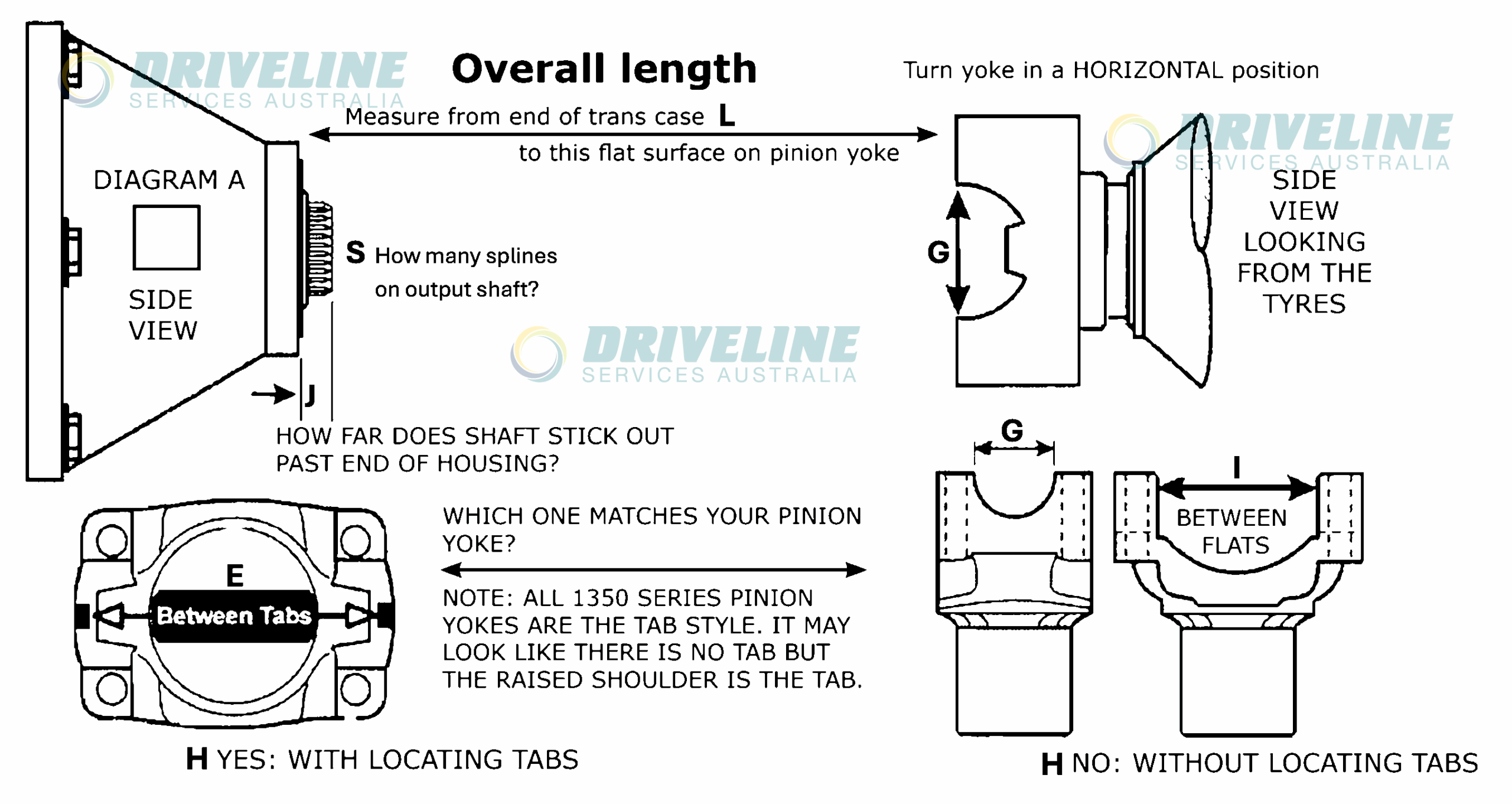

Single piece – spline yoke

Single piece – spline flange

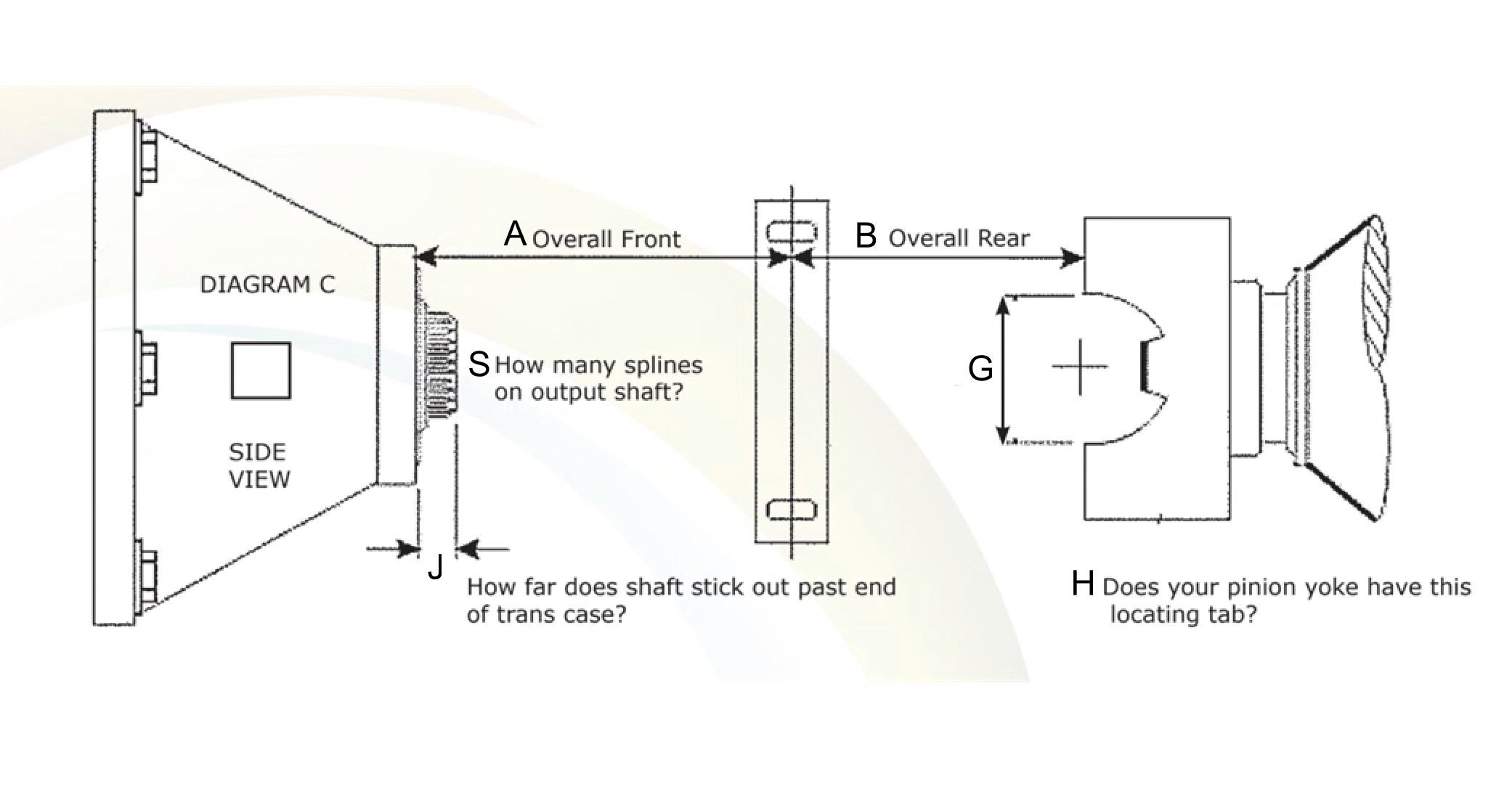

Two piece – spline yoke

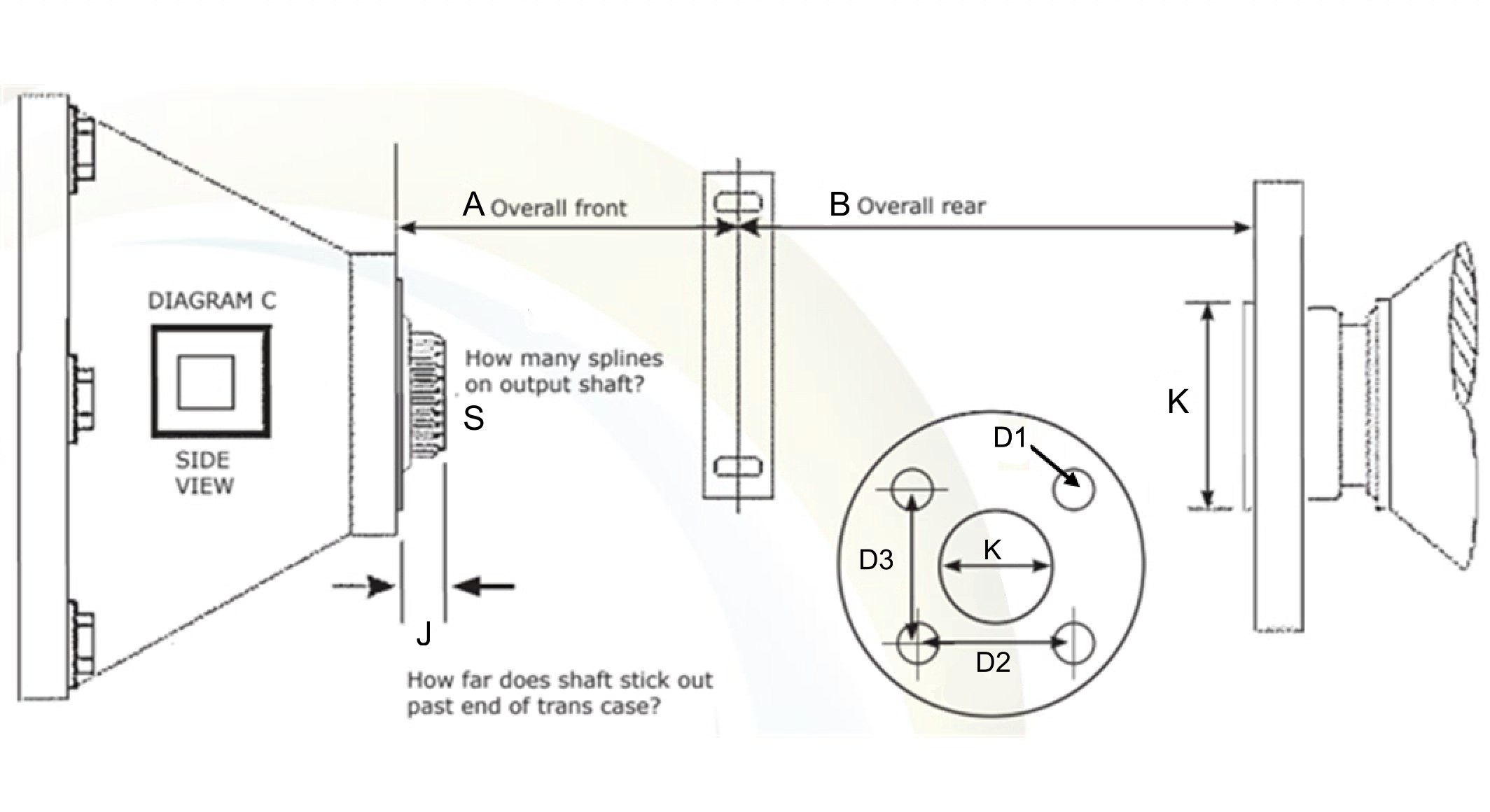

Two piece – spline flange

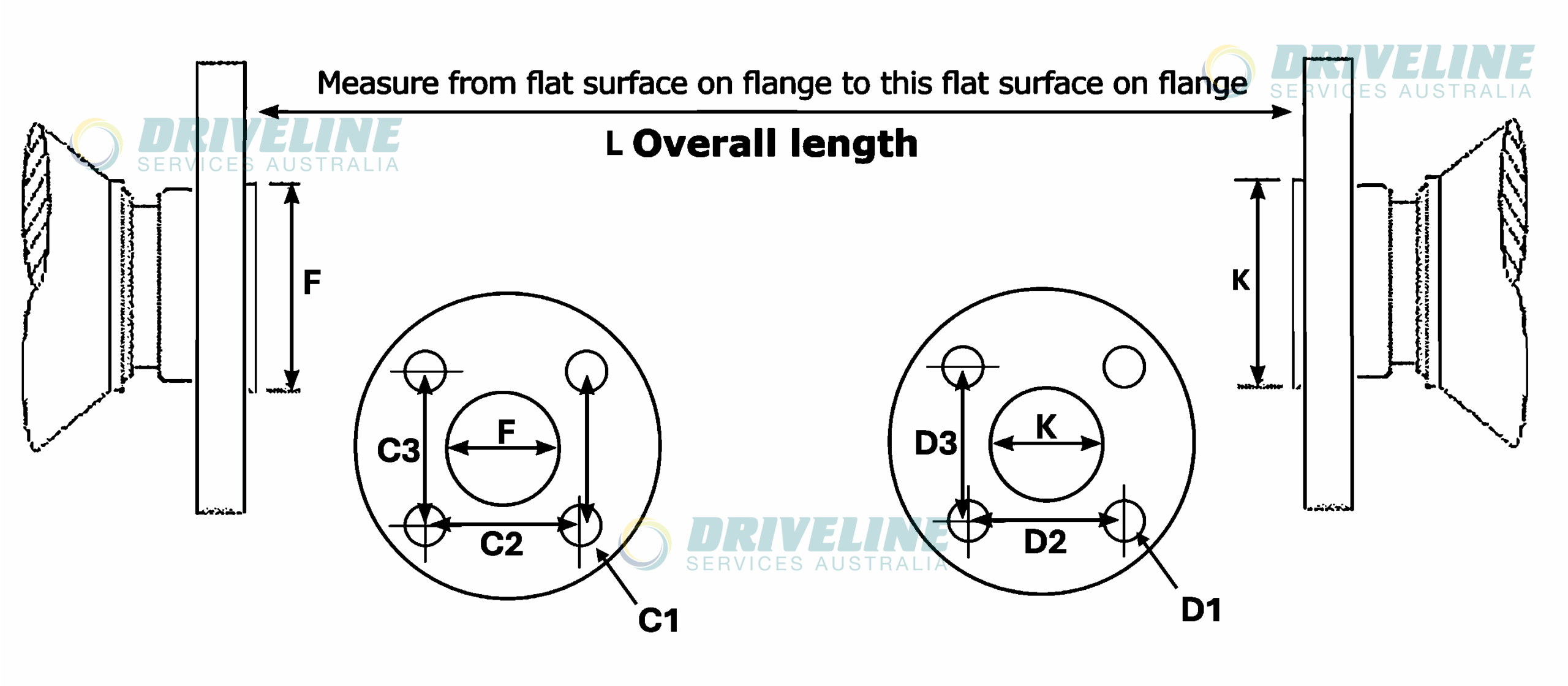

Single piece – bolted flanges

Other / help me choose

Image Gallery

Measurements

Vehicle details

Comments

Contact Information

Request a Quote
